Gray Tools

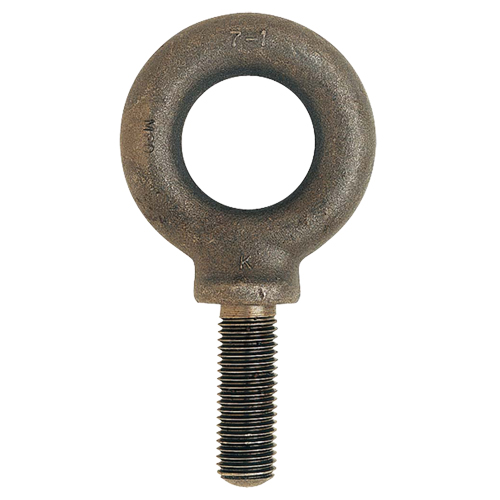

Eye Bolt, 71.50 mm Dia., 51 mm L, Uncoated Natural Finish, 4708 lbs. (2.354 tons) Capacity

Model: LU708

Mfr. No.: BS18M

  • Eye Bolt, 71.50 mm Dia., 51 mm L, Uncoated Natural Finish, 4708 lbs. (2.354 tons) Capacity Buying Direct Corp.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$27.28 / Each

0 In Stock

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

Working Load Limit

4708 lbs. (2.354 tons)

Finish

Uncoated Natural Finish

Eye Diameter

71.50 mm

Shank Length

51 mm

Body Style

With Shoulder

Shank Threading

Fully Threaded

I.D. Eye

38"

O.D. Eye

71.5 mm

Thread Size Mm, UNC-2A

M18 x 2-1/2"

Overall Dimensions

5-1/4" L x 2-3/4" W x 1-1/4" H

Weight

1.1 lbs.

  • Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
  • Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
  • Never apply loads greater than rated capacity
